TITANIUM POROUS FILTERS

1.MATERIAL: 99.4% MIN. TITANIUM POWDER
2.TECHNICAL DATA:

   1) FILTER GRADES: 0.45μm - 120μm
   2) POROSITY : 28-50%
   3) WORKING TEMPERATURE MAX.: 280 ℃ (WET)
   4) COMPRESSIVE STRENGTH: 0.5-1.5MPa
   5) PRESSURE DROP: 1.0MPa MAX.
3. ALLOWABLE WORKING ENVIRONMENT: NITRIC ACID, FLUORIDE SALTS, LACTIC ACID, LIQUID CHLORINE, SEA     WATER, IN THE AIR.
4.FORMING SHAPES:

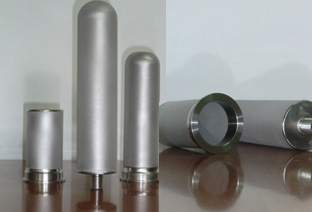

1) SEAMLESS TUBES

SEAMLESS TUBES	OD, MM	ID, MM	L, MM
SMALLEST	20	16	20
LARGEST	120	110	1500

A) JOINT TYPE: M20, M30, M40, 215,220,222,226, 228，NPT, BSP, BSPT, Flanges, other joints as requests.
B) FILTER GRADES: 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 50μm, 80μm, 100μm，120μm

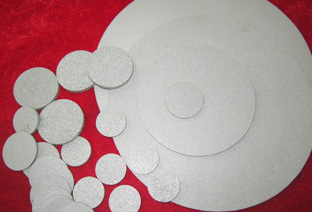

2) DISCS

DISCS	D, MM	T, MM
MIN.	5	0.5
MAX.	400	2 MIN.
FILTER GRADES: 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 50μm, 80μm, 100μm，120μm



3) SHEETS

SHEETS	W x L ，MM	T, MM
	5*5 MIN.	0.5MIN.
	280*280 MAX.	2 MIN.
FILTER GRADES: 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 50μm, 80μm, 100μm，120μm
